HOW TO INSTALL AND CONFIGURE PFSENSE FIREWALL

In this post we are going to cover:

• How to install pfsense firewall

• How to configure and add VLAN on firewall to connect different network

We are going to install this virtual pfsense firewall in NUC2. One of the purpose of this firewall is to provide internet to all of the virtual machines in militarized zones and database zone via LAN segment as their network is different.

Start writing or type / to choose a block

Open chrome browser, search for pfsense firewall iso download and click on the second result

Start writing or type / to choose a block

Click download

Start writing or type / to choose a block

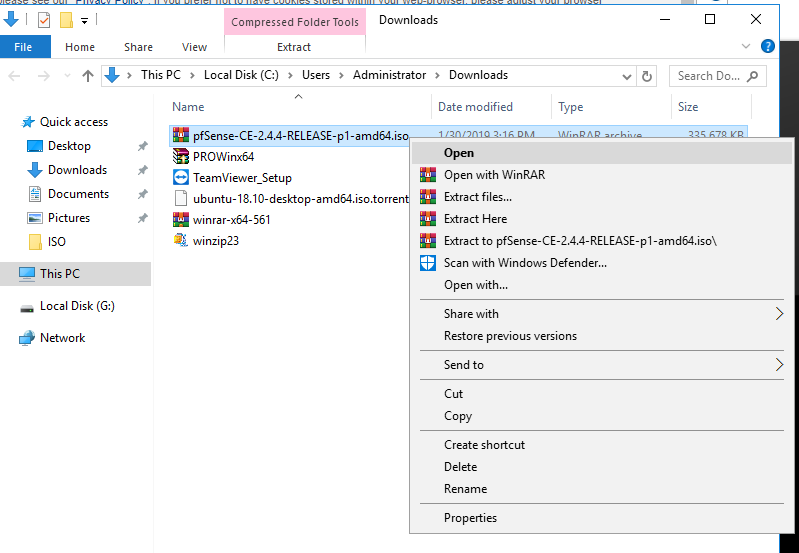

Decompressed the downloaded file

Start writing or type / to choose a block

Click create a new virtual machines

Start writing or type / to choose a block

Click next

Start writing or type / to choose a block

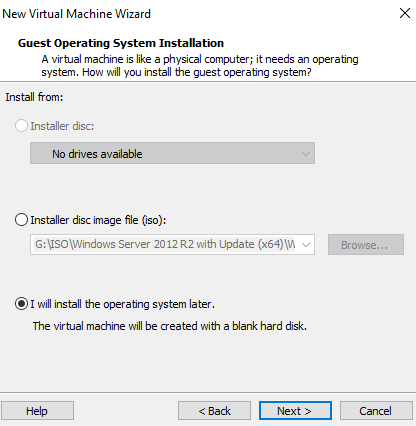

Tick I will install the operating system and click next

Start writing or type / to choose a block

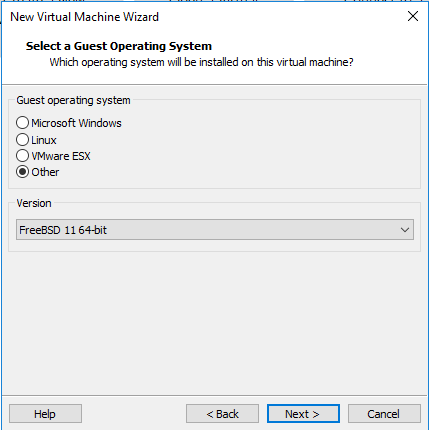

Tick other for guest operating system, choose FreeBSD 11 64bit and click next

Start writing or type / to choose a block

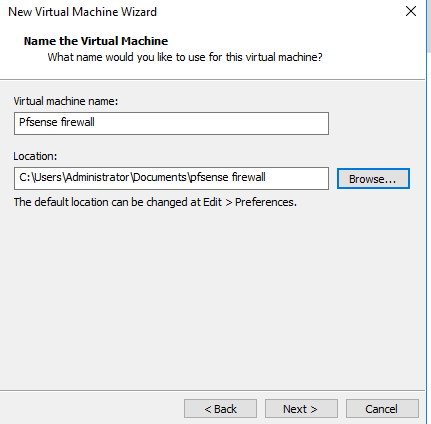

Renamed the virtual machine and click next

Start writing or type / to choose a block

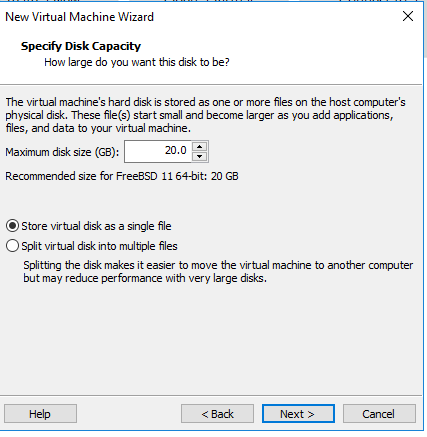

Key in 20GB for disk disk size, tick store virtual disk as single file and click next

Start writing or type / to choose a block

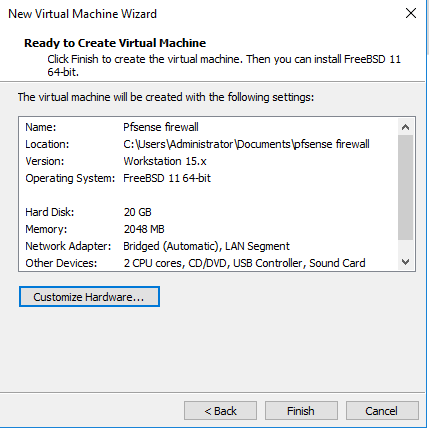

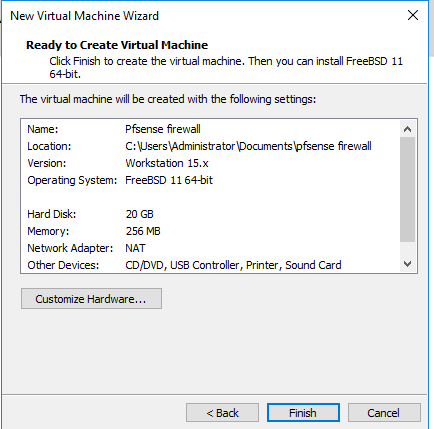

Click customize hardware

Start writing or type / to choose a block

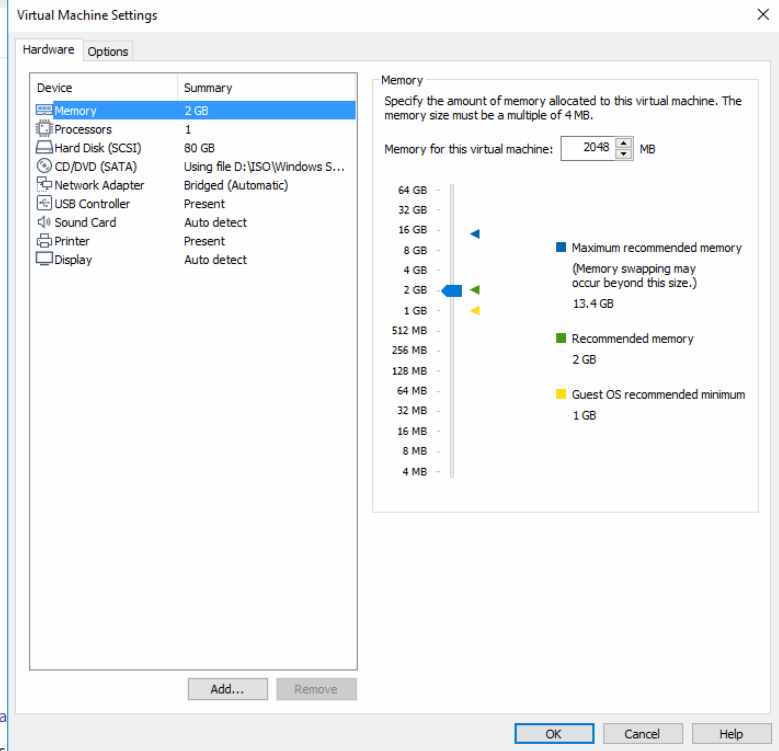

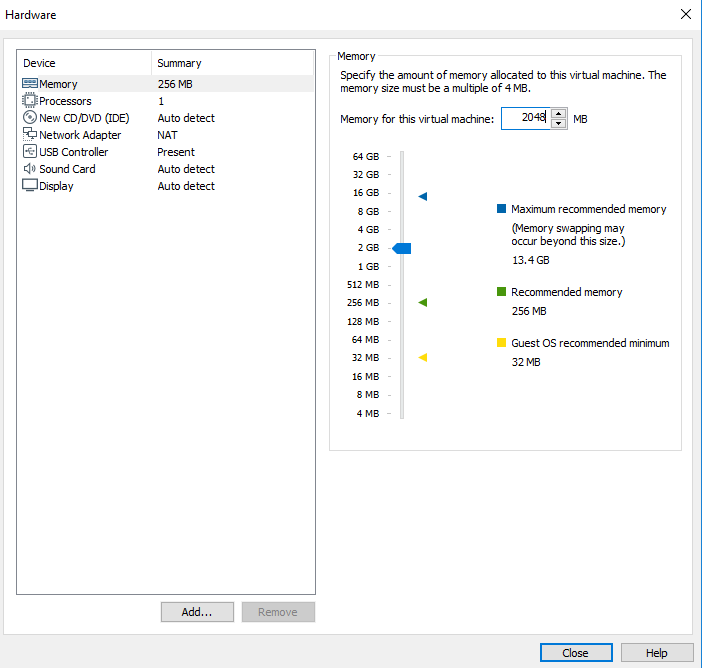

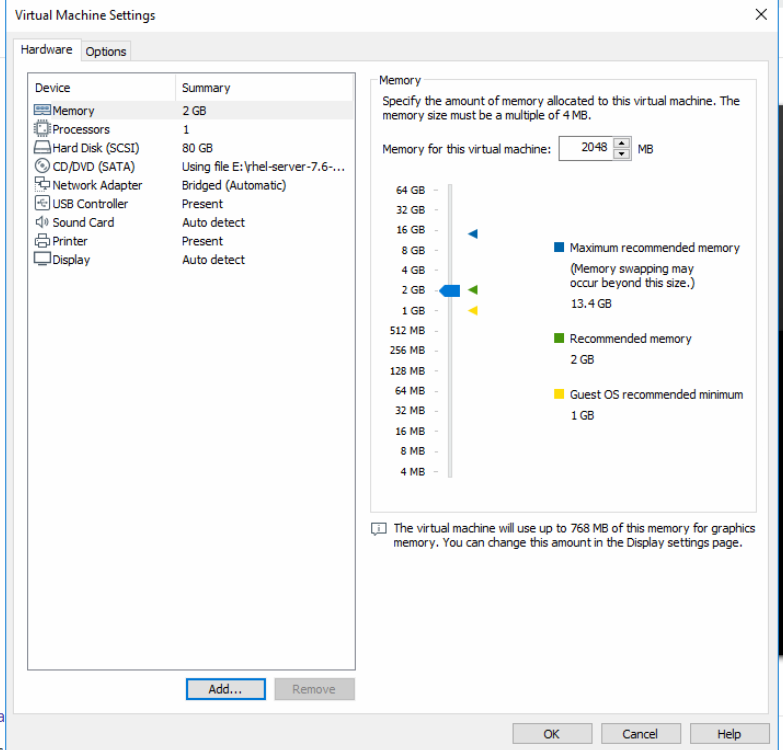

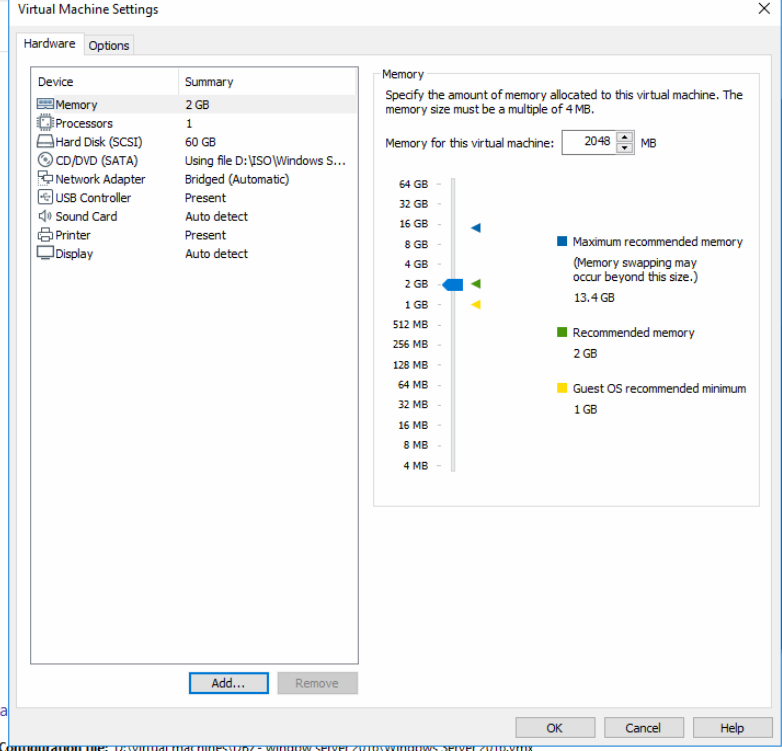

Key in 2GB for memory (2048MB in binary)

Start writing or type / to choose a block

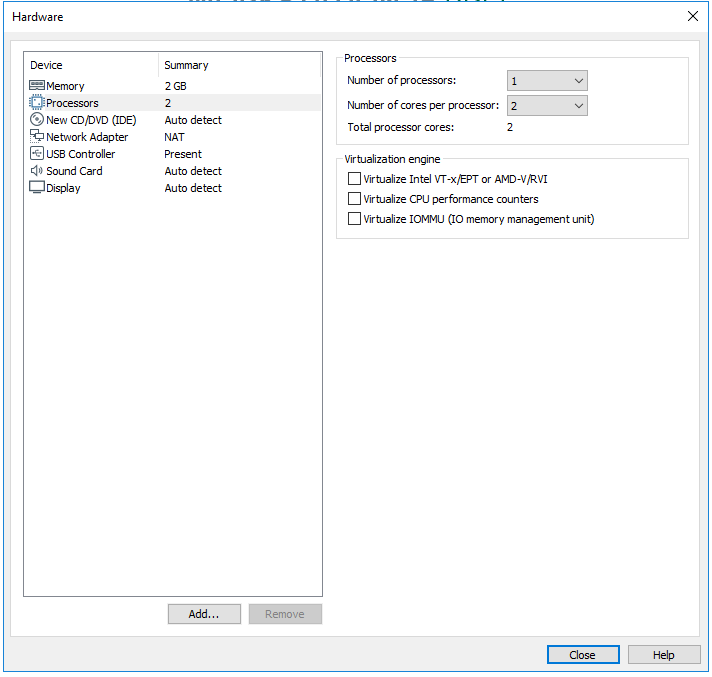

Configure number of processor as above

Start writing or type / to choose a block

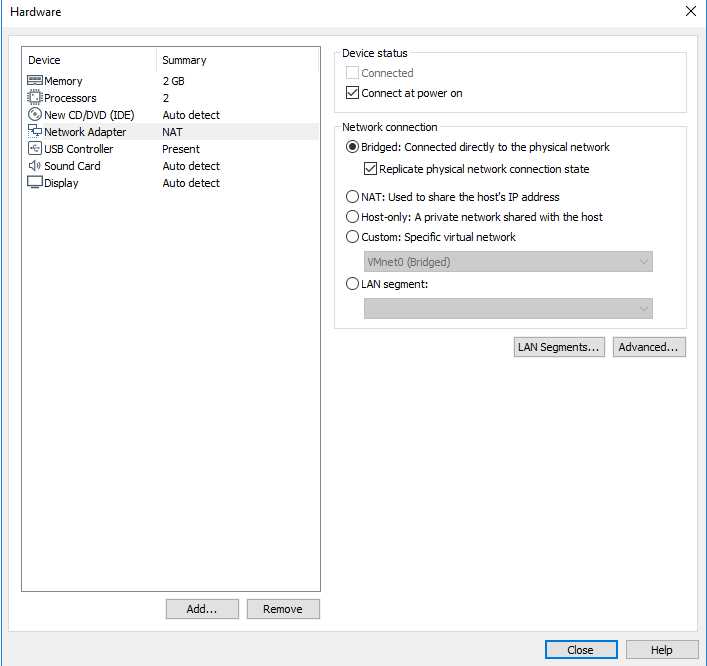

change to bridge and tick replicate physical network

Start writing or type / to choose a block

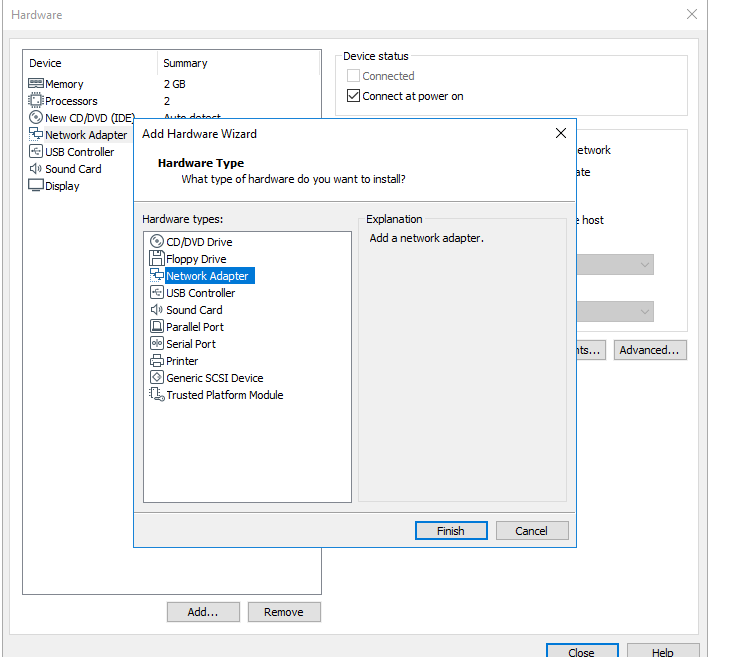

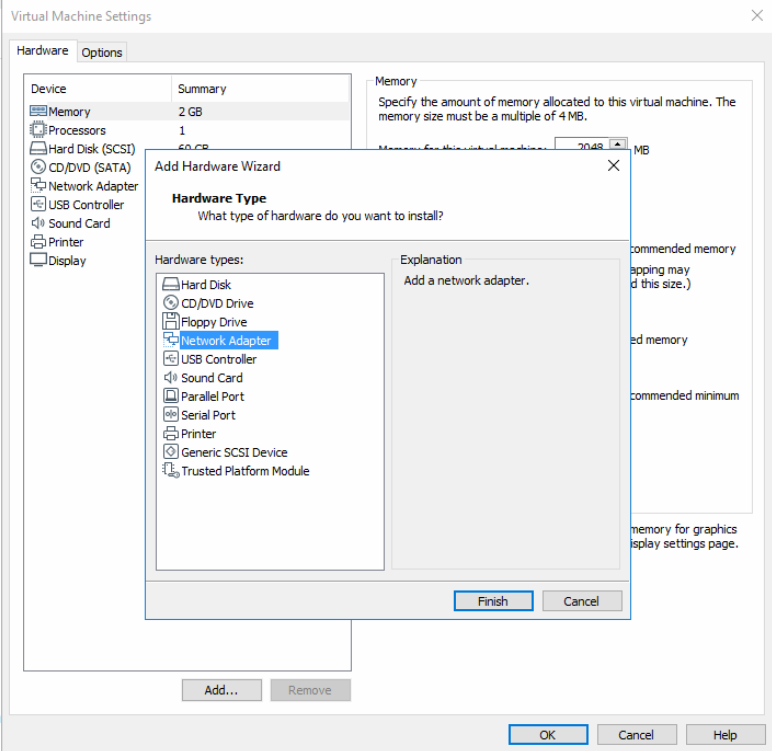

Click add, tick network adapter and click finish

Start writing or type / to choose a block

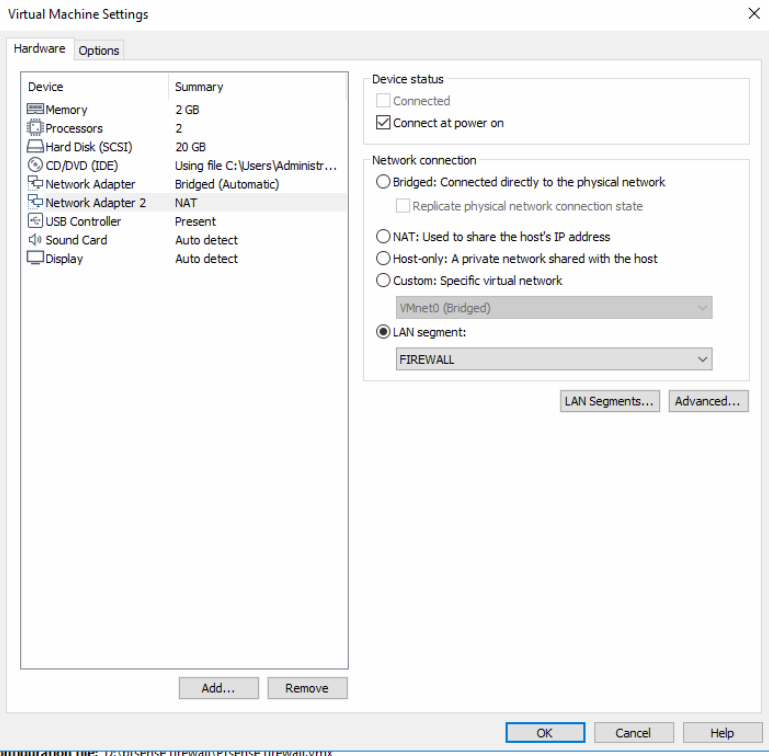

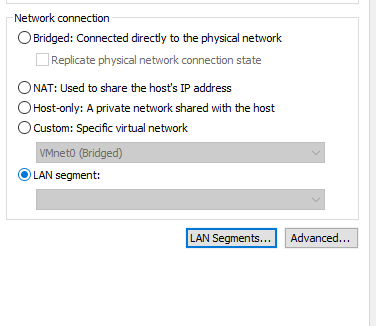

Tick LAN segment and click LAN segment next to advanced

Start writing or type / to choose a block

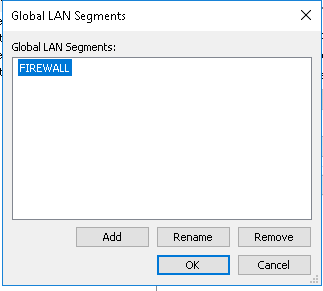

Click add and named the new LAN segment FIREWALL

Start writing or type / to choose a block

Choose the newly added adapter

Start writing or type / to choose a block

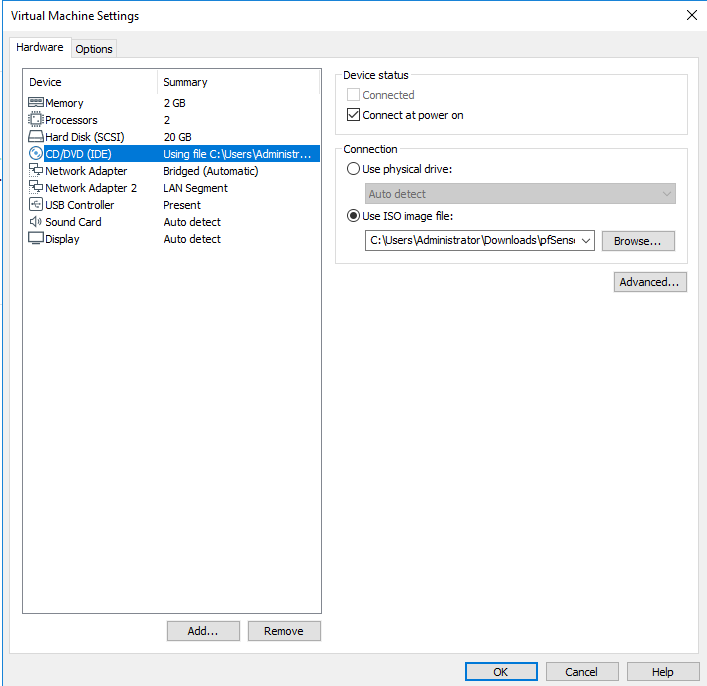

Tick use ISO image file and click browse to locate the pfsense firewall ISO image that we download earlier then click ok

Start writing or type / to choose a block

Click finish

Start writing or type / to choose a block

Click power on this virtual machine

Start writing or type / to choose a block

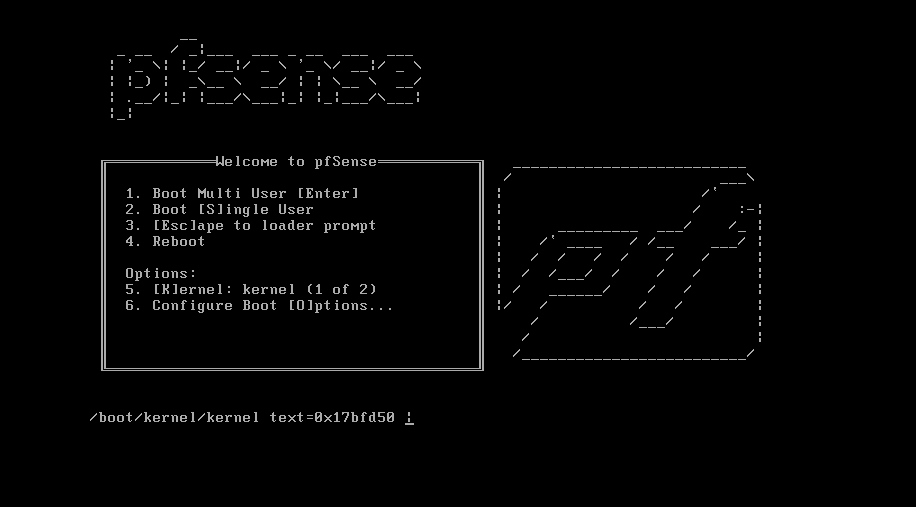

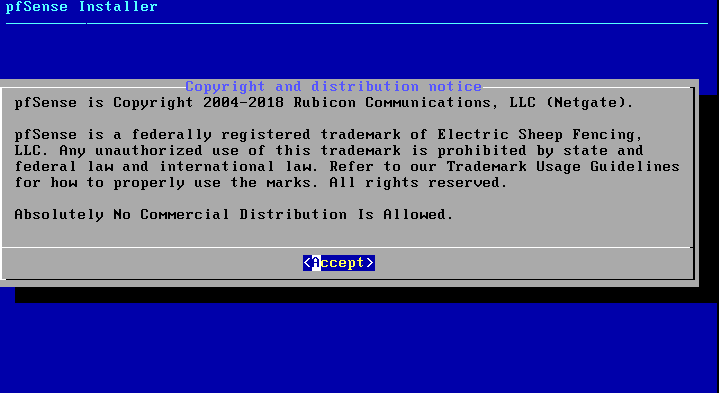

Press enter to accept

Start writing or type / to choose a block

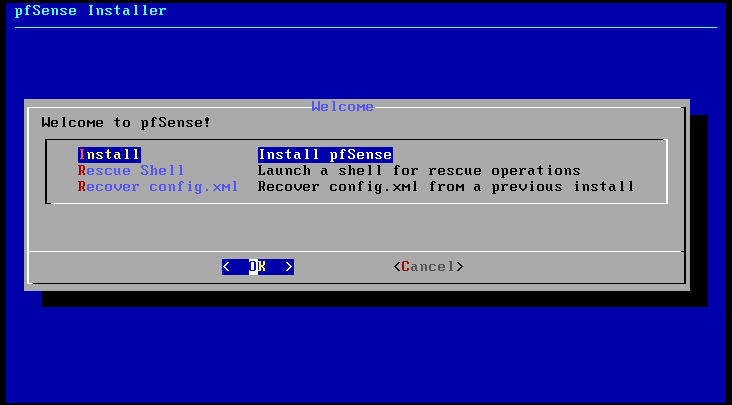

Press enter

Start writing or type / to choose a block

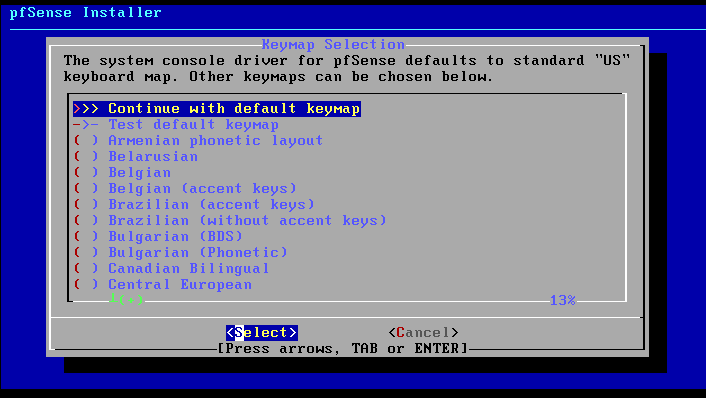

Press enter

Start writing or type / to choose a block

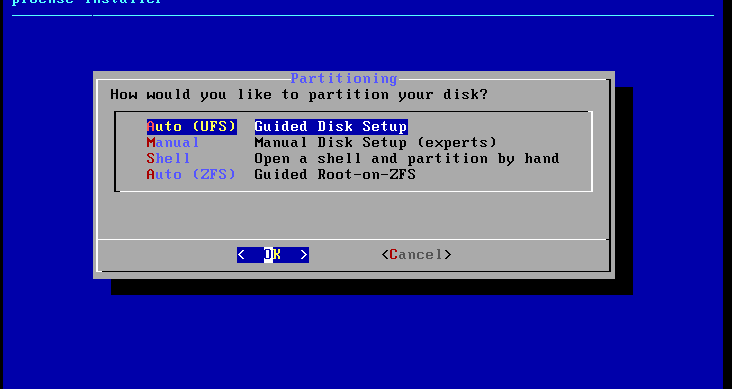

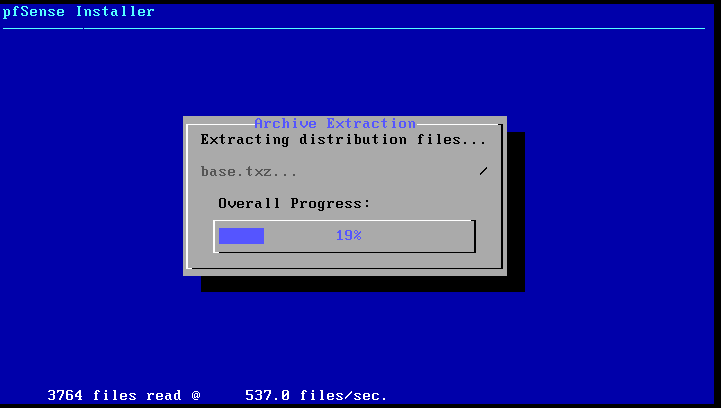

Press OK to auto partition

Start writing or type / to choose a block

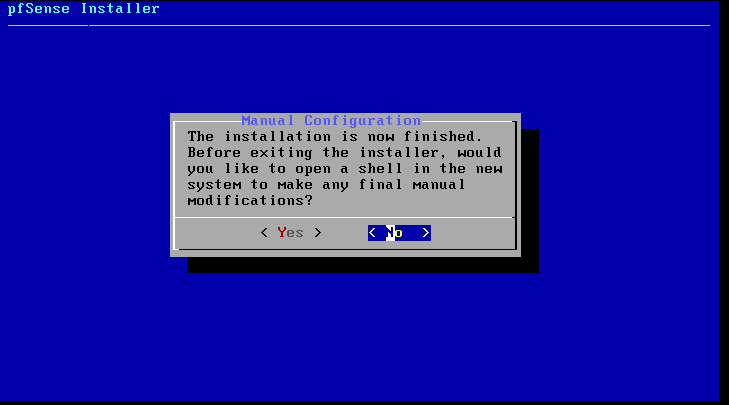

Move to no and press enter

Start writing or type / to choose a block

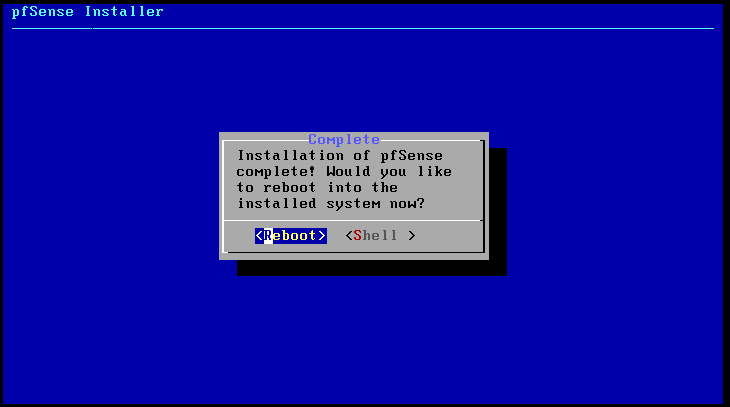

Move to reboot and press reboot

Start writing or type / to choose a block

Start writing or type / to choose a block

Start writing or type / to choose a block

Start writing or type / to choose a block

On all Virtual machine in Militarized zone and database zone, add a new LAN segment network adapter and named it FIREWALL:

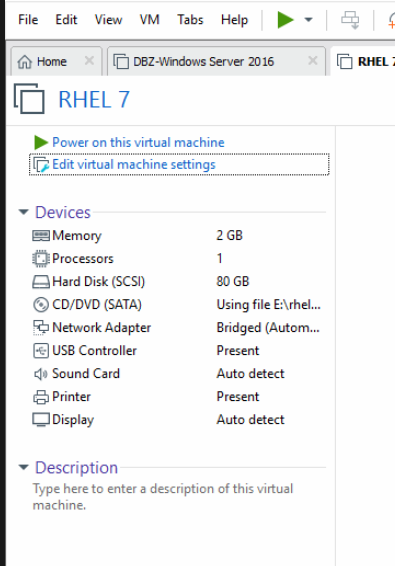

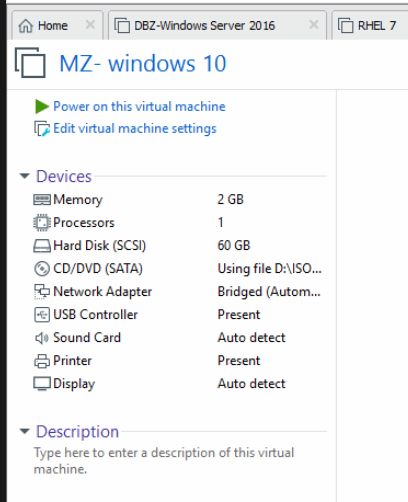

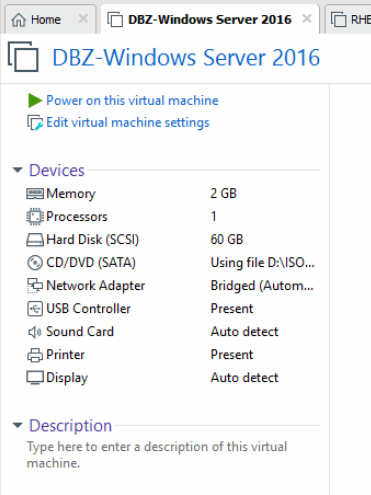

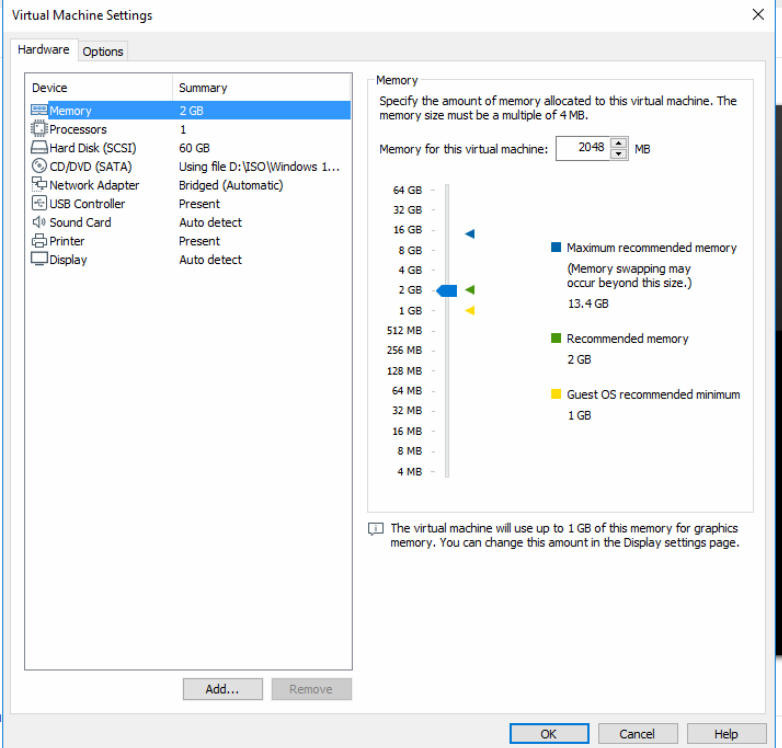

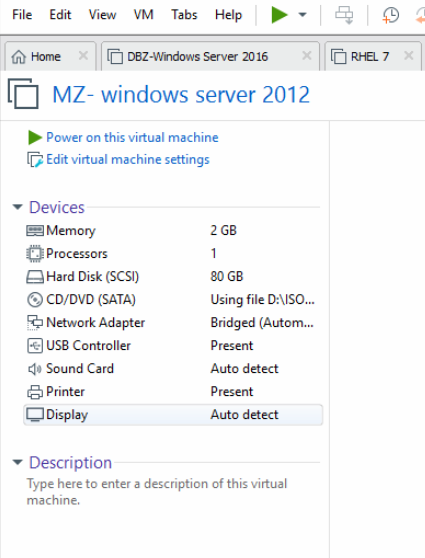

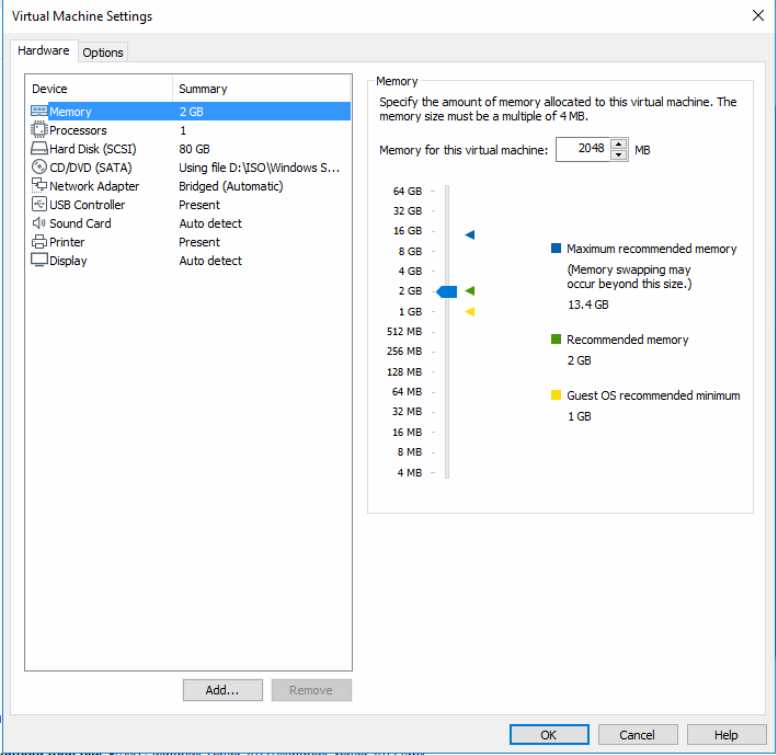

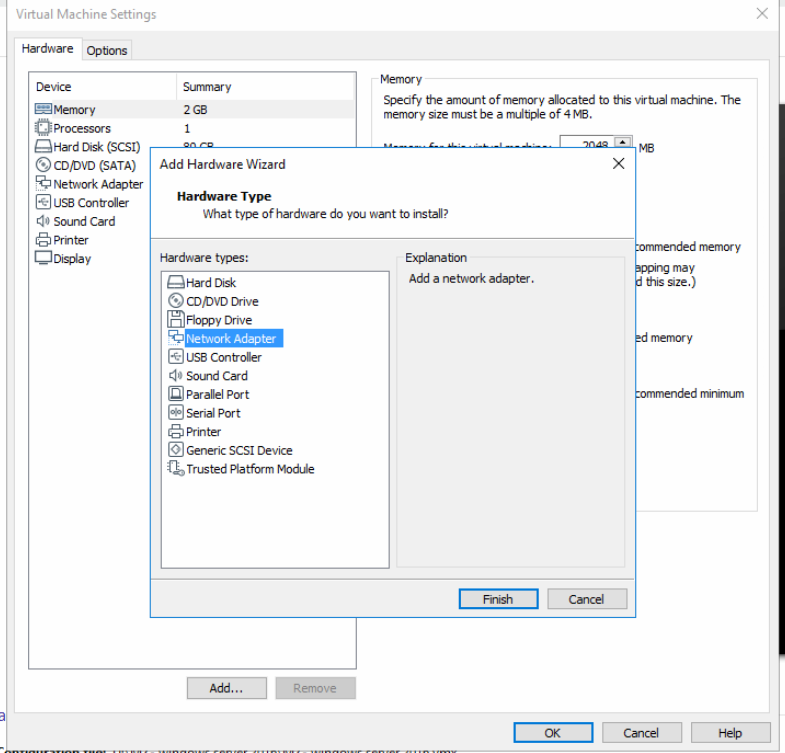

Click edit virtual machine settings

Click add

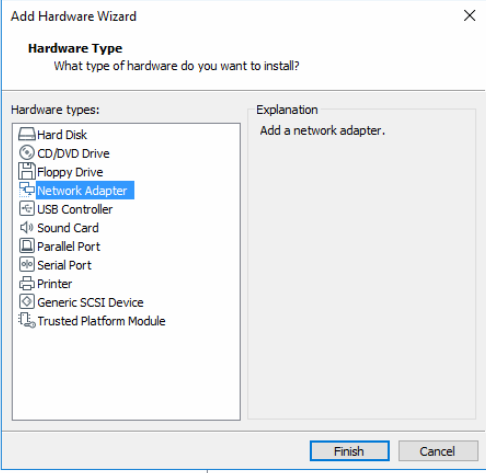

Choose network adapter and click finish

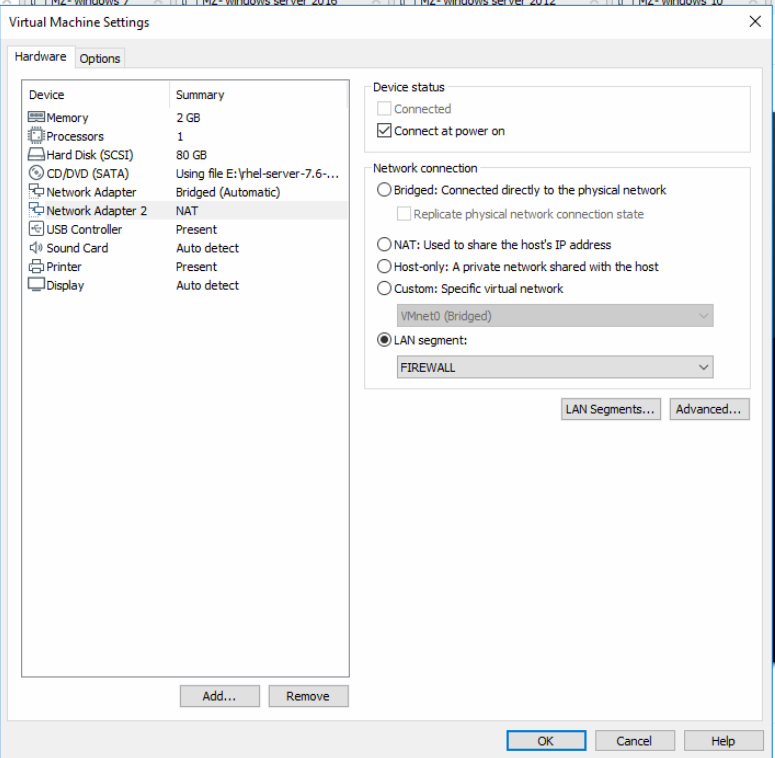

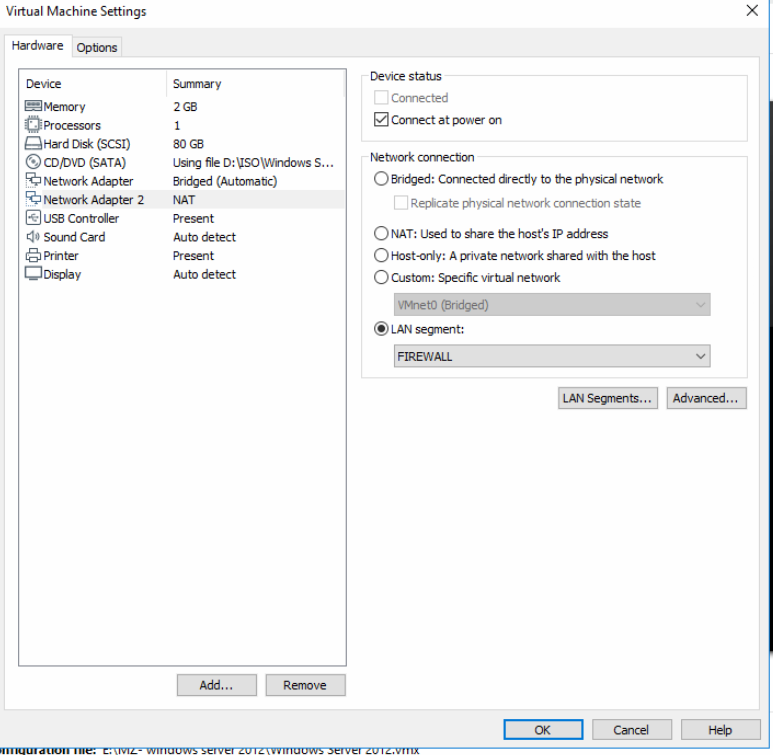

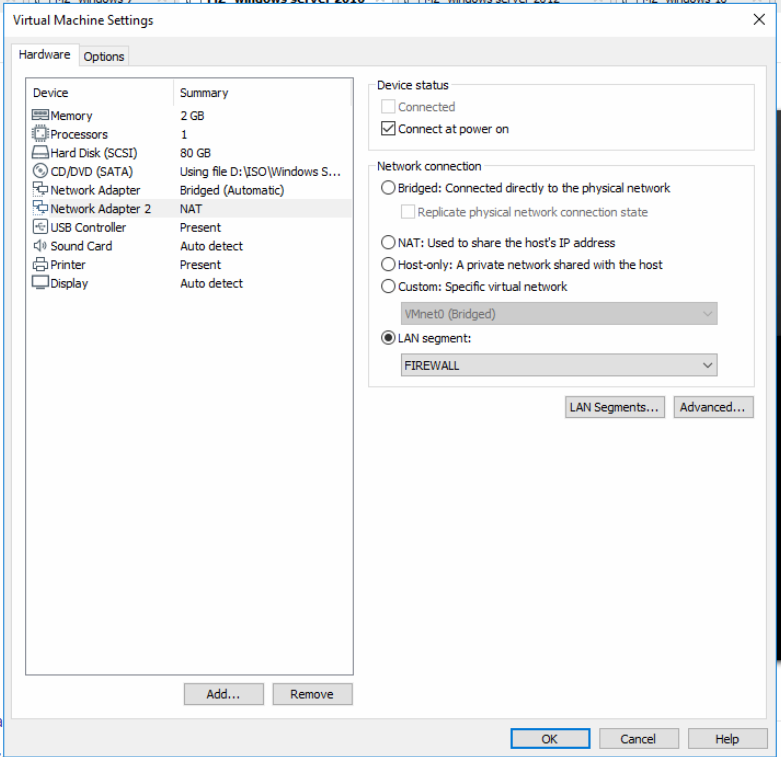

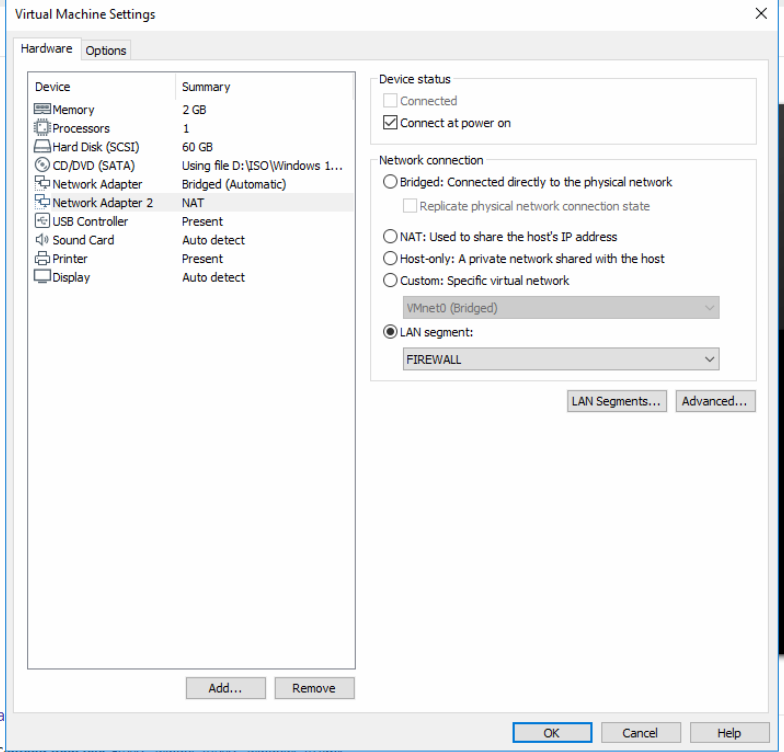

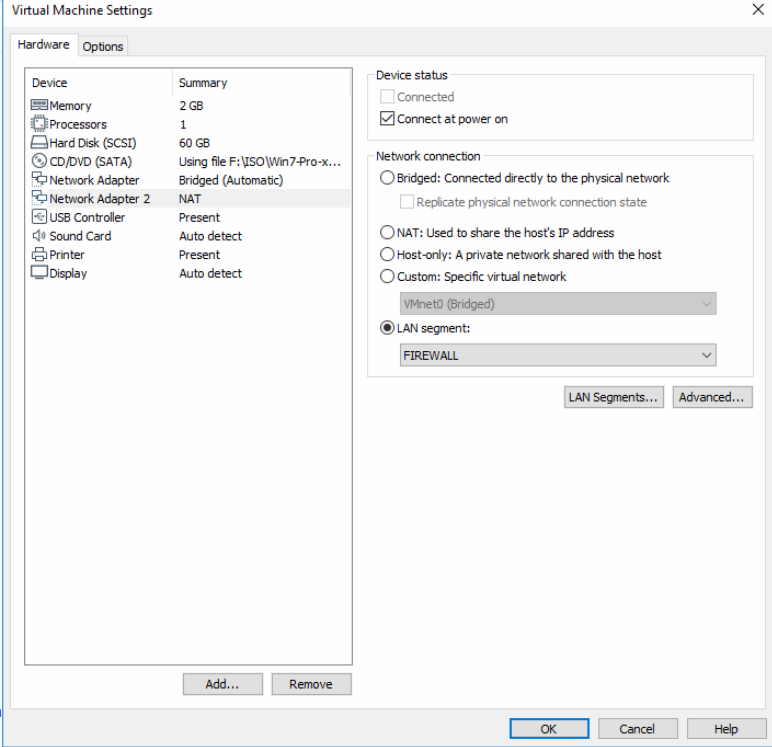

Tick LAN segment and choose FIREWALL LAN segment from the drop down list

lick edit virtual machine settings

Click add

Choose network adapter and click finish

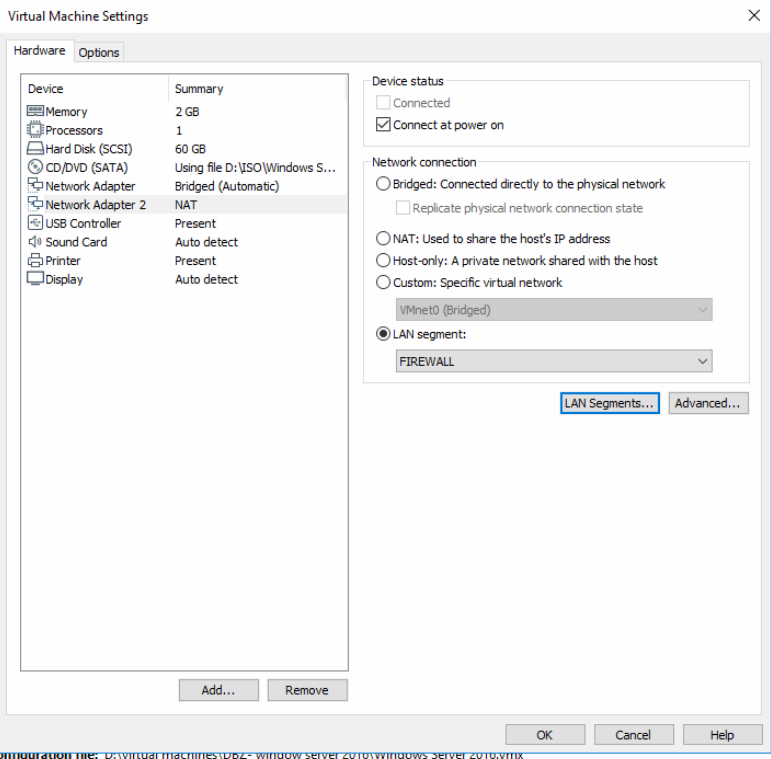

Tick LAN segment and choose FIREWALL LAN segment from the drop down list

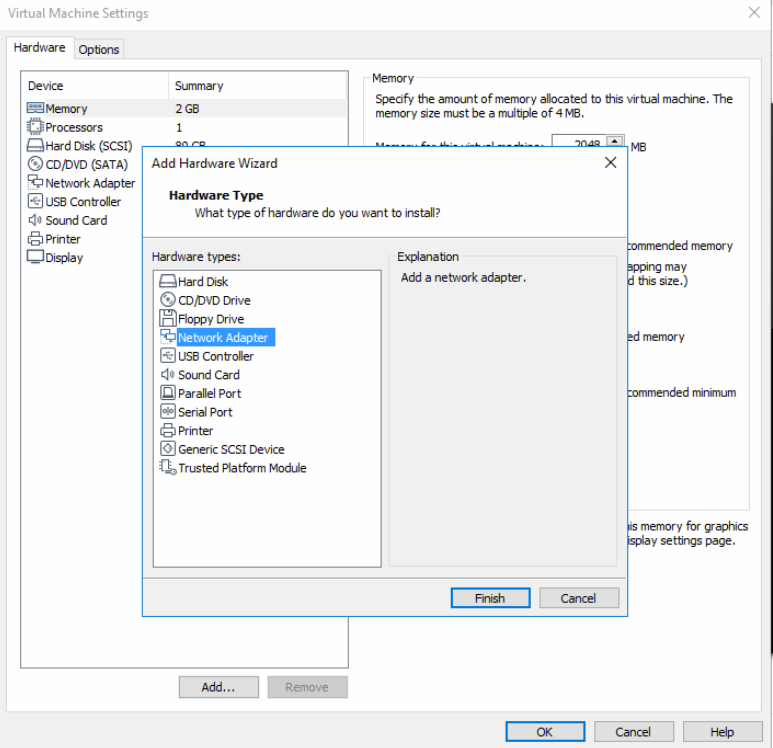

Click edit virtual machine settings

Click add, choose network adapter and click finish

Tick LAN segment and choose FIREWALL LAN segment from the drop down list

Click edit virtual machine settings

Click add

choose network adapter and click finish

Tick LAN segment and choose FIREWALL LAN segment from the drop down list

Click edit virtual machine settings

Click add

choose network adapter and click finish

Tick LAN segment and choose FIREWALL LAN segment from the drop down list

Click edit virtual machine settings

Click Add

choose network adapter and click finish

Tick LAN segment and choose FIREWALL LAN segment from the drop down list

How to add VLAN on pfsense firewall:

On any virtual machines that is running on NUC2 and connect to pfsense via FIREWALL LAN segment network adapter

open chrome browser

type IP address of 192.168.1.1 in searchbox

Key in default username and password which is admin and pfsesne to login

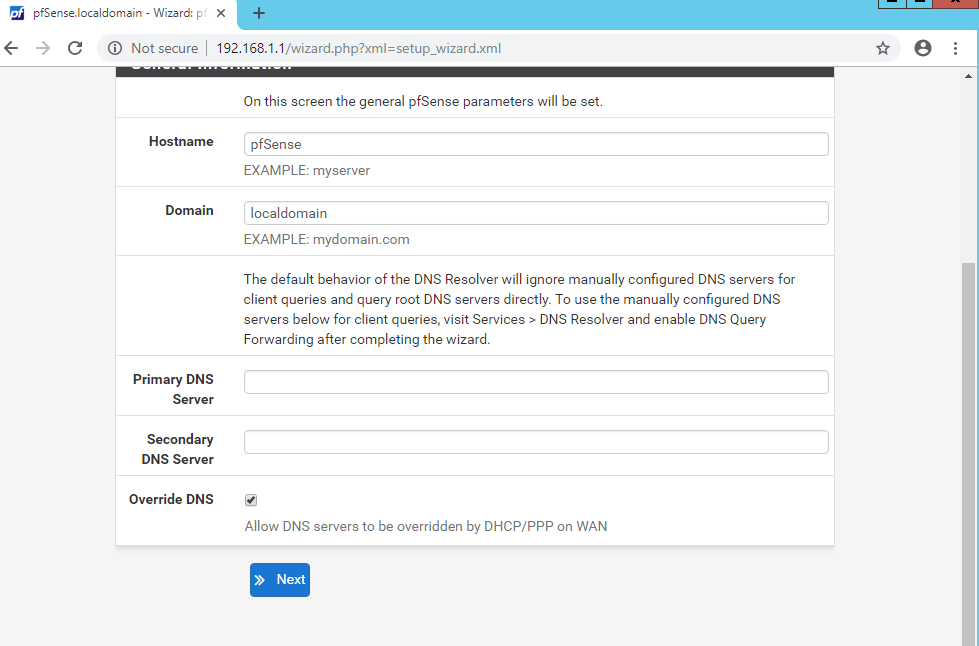

Click next

Click next

Click next

Change timezone to asia/Kuala_Lumpur

click next

Click next

You can choose to change admin account password here

Click reload

Click finish

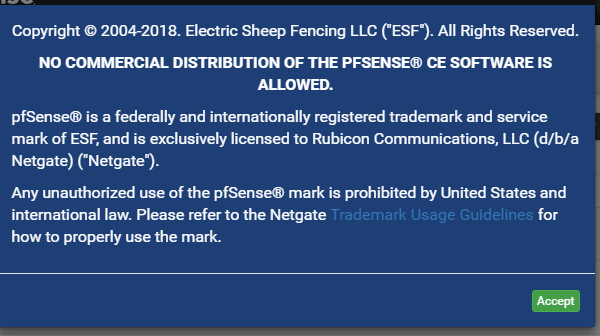

click accept

How to setup VLAN:

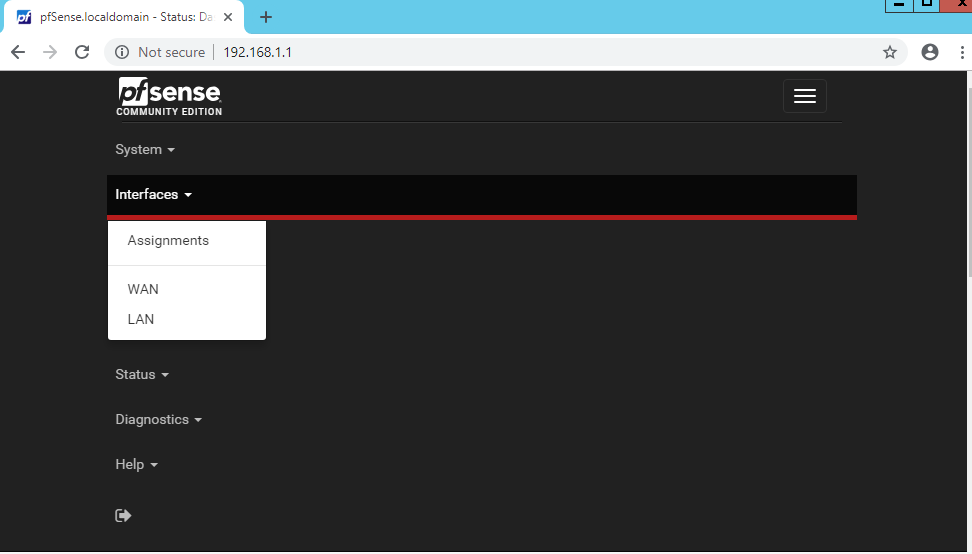

Under interfaces, click assignments

Click on VLANs tab and click add

Configure as shown above and click save

Repeat the progress, press add to add a new vlan and configure as above then click yes

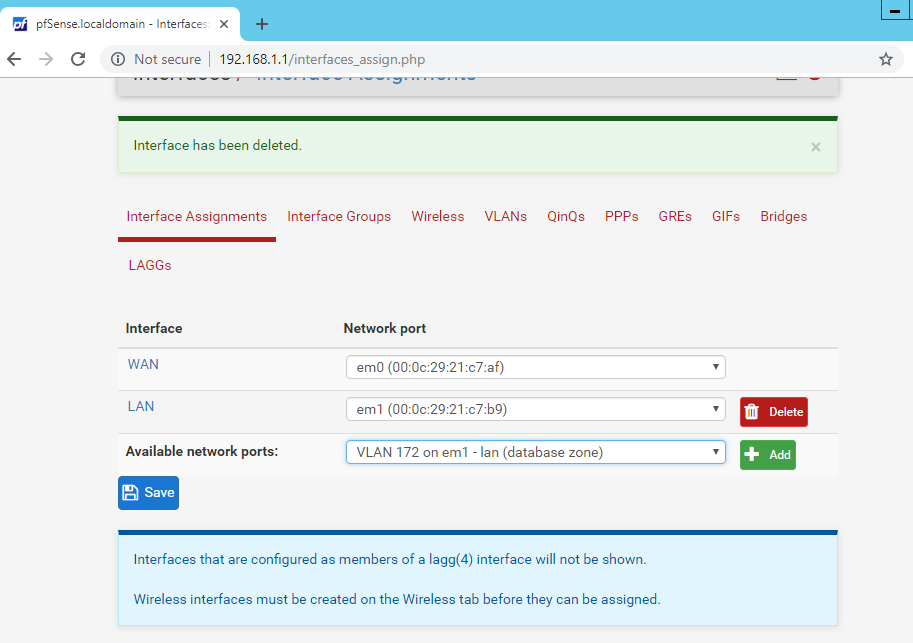

Go to interface assignments and click add to add the two VLAN that has been created

Click save after two vlan interfaces has been added

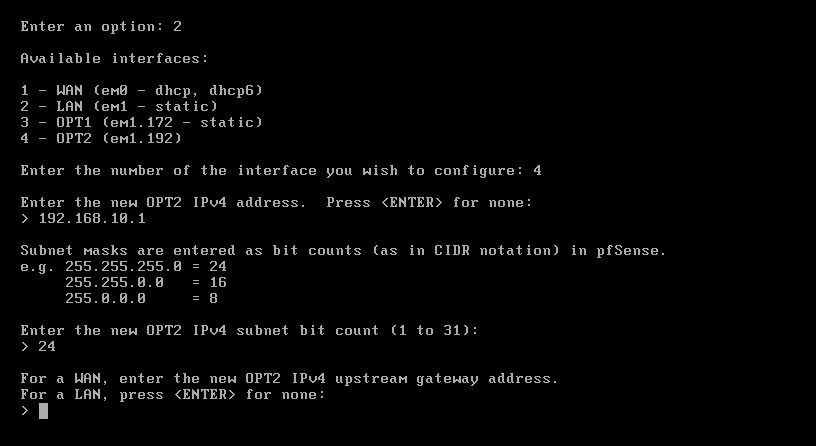

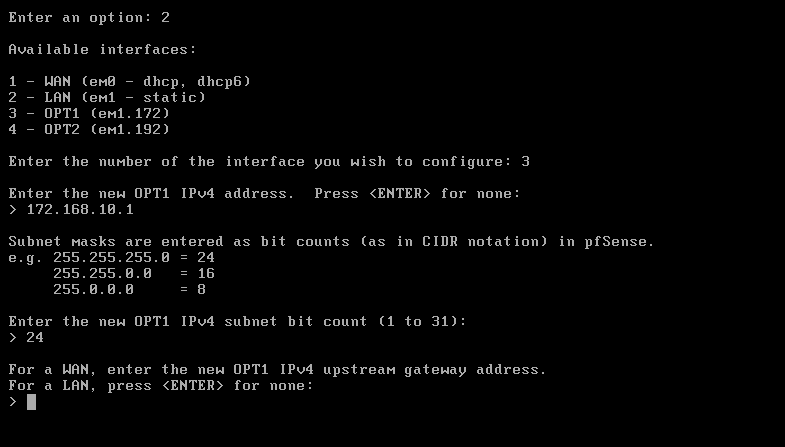

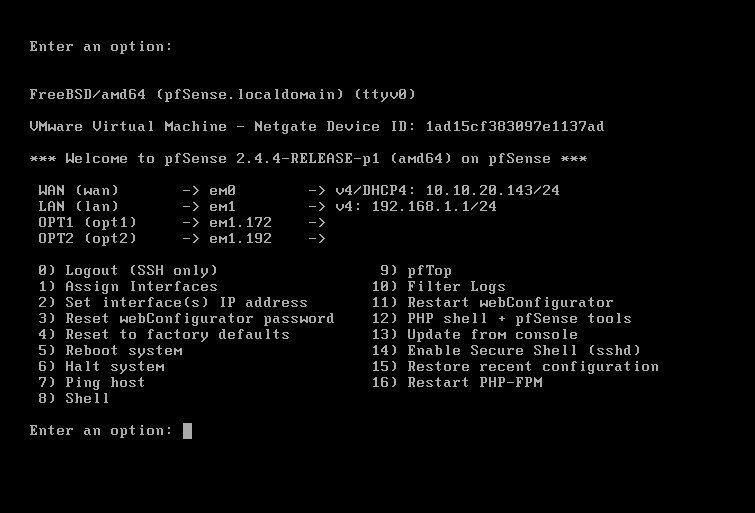

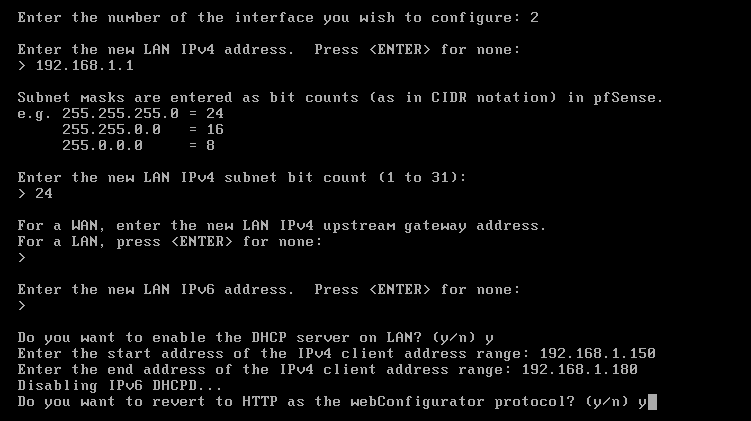

Back to pfsense terminal, Enter 2

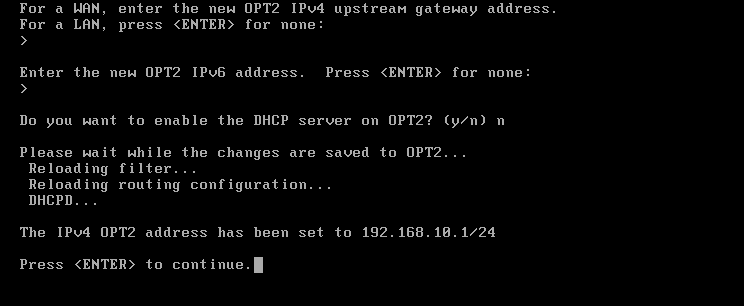

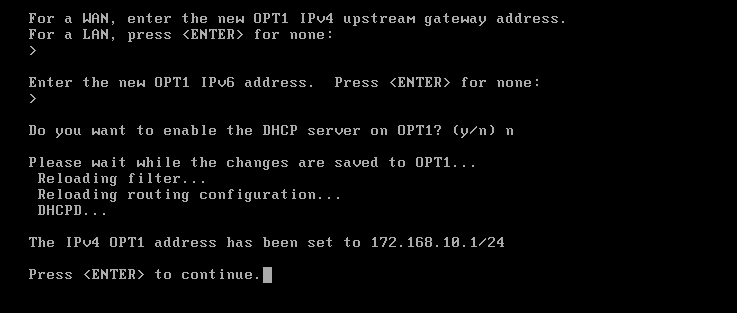

Configure as shown above

Repeat the same step for second VLAN

After this restart all virtual machines on militarized zone and database zone, it should get an IP from pfsense DHCP server and internet access.
